Fire rated sheathing goes beyond code burn time requirements

Class A Flame Spread Rating

(ASTM E-84, ASTM E-2768)

Load bearing 1hr and 2hr fire-rated wall assemblies

(ASTM E-119) ICC Certified, ESR-5116

Type III, Type V construction, zero lot lines applications

Patented intumescent technology significantly slows down the spread of flames providing up to

53% more fire resistance than code.*

*per ASTM E-119 in a third party accredited lab

STRONG. DURABLE. EFFICIENT.

Lightweight, easy to cut panel
No chip or flake
Minimal dust
Less warp
Remains square/flat
No panel strength reduction

less material. less weight. less labor.

No exterior gypsum required
No shaft liner required
1 person handling

complete design freedom.

Use ANY exterior cladding material:
• Fiber cement
• Brick
• Vinyl siding
• Stone

fire rated wall assemblies

residential: type V

single family home

1 HR / 1 HR

residential: type V

townhome

1 HR / 1 HR

PARTITION WALL

commercial: type III

Multifamily

2 HR / 1 HR 2x4

2 HR / 2 HR 2x6

PARTITION WALL

firepoint competitive matrix

FIREPOINT 2500 FIRE-RATED OSB FRT PLYWOOD
OVERALL FIRE RESISTANCE EXCEEDS CODE
by up to 53% on select assemblies
MEETS CODE
per manufacturer
CODE COMPLIANT
per manufacturer
BURN TIME TEST RESULTS* 1:29:49 00:43:50 00:27:49
NO EXTERIOR DRY WALL REQUIRED** TRUE FALSE TRUE
only for select cladding: brick, stucco, etc.
PANEL ISN’T PRONE TO CRACKING OR CHIPPING TRUE FALSE
MEETS OSHA WEIGHT RECOMMENDATION FOR 1 PERSON LIFTING < 50 LBS YES NO YES
NO PANEL STRENGTH REDUCTION TRUE TRUE FALSE
OFFERS PARTITION WALL ASSEMBLY YES YES NO

*Burn testing completed at a third party accredited lab. Sheathing only on non-combustible framing.

** For Type III load bearing exterior wall / 2 hr rated from both sides

technical guide

version 12/2023

receiving and storage
  • Product will arrive bundled and wrapped on a skid

  • Scan QR code on bundle for up to date ESR, Installation Videos and access to customer support

  • Keep product wrapped and out of the way in a dry location prior to installation

  • Product should be moved with material handling equipment as per OSHA requirements to avoid injury or damage to product

  • Should excessive rain cause flooding in your region, it is recommended to store product elevated off the ground as needed

For Support: 678.999.2100

applications
  • Roof sheathing on buildings of Type III, IV and V construction for a distance of 4 feet (1219 mm) on both sides of the fire wall to provide continuity in accordance with Exception 4.3 of IBC Section 706.6 and the exception to IRC Section R302.2.4. The sheathing must be installed with the FirePoint® 2500 overlayment side facing the interior of the building

  • Exterior walls and roof sheathing on buildings of Type I and II construction, as described in IBC Section 603.1, subsection 1. The FirePoint® 2500 overlayment must be laminated to both sides of the panels Wall sheathing for exterior walls in buildings of Type III construction with a two-hour rating or less. The FirePoint® 2500 overlayment must be laminated to each side of the panels and the studs must be of noncombustible material or fire-retardant-treated wood

  • Class A interior finish in accordance with IBC Section 803.1.2. The panels must be installed with the FirePoint® 2500 overlayment side facing the interior of the building

  • Component of fire-resistance-rated construction (IBC Section 703). Refer to assemblies described in Section 4.4 of this report

For Support: 678.999.2100

wall installation
  • Install in accordance with the fire rated assemblies detailed in the guide and on the current version of ICC ES ESR-5116
  • If there is no assembly for a given project, detailed FirePoint panels should be installed vertically with horizontal seams blocked

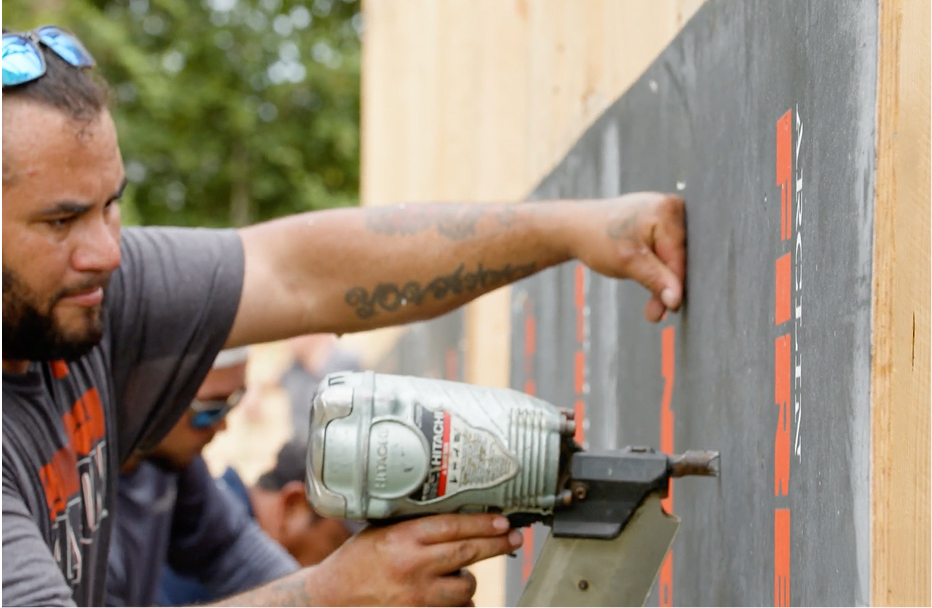

  • Install FirePoint sheathing in the correct orientation (for single sided FirePoint) as per approved plans Install with a 1/8” gap per panel maintained by a spacer or 10d box nail
  • Panel joints shall be on top of framing members or blocked appropriately at the seams
  • Use prescribed fasteners for each project as per the approved plans. Should plans not exist, use a minimum of 3” long x .131” diameter smooth shank framing nail spaced 6” around the perimeter and 12” in the field of the panel with nail heads flush to the panel. Fasteners should be 3/8” from the outside edge of the panel
  • Other code approved fasteners may be used as they comply with APA standards

For Support: 678.999.2100

handling and general installation
  • As with most wood panel products, it is recommended to wear gloves when handling product to avoid splinters or injury

  • Fastener recommendations are to use code approved fasteners per applications, however, galvanized is ideal, as it may be exposed to weather during installation prior to being covered

  • Fasteners are to be installed as per the nailing schedule prescribed by the approved plans for each project. If there are no plans, a minimum spacing of 6” around the perimeter and 12” in the field of the panel is recommended using a 3”x.131” diameter smooth shank nail driven flush to the panel, while avoiding over driving them

  • Masks are recommended when cutting FirePoint

  • Comply with all local safety and building code regulations when installing product(s) in all approved building applications, such as roof and wall installations

For Support: 678.999.2100

roof installation – coming soon
  • Install in accordance with ICC-ES Report ESR-5116 or as specified by the plans approved by the local jurisdiction where the project is being constructed

  • Face the FirePoint layer downwards toward the attic space and wear non-skid shoes when installing roof sheathing.

  • Install the panel longitudinally with the long dimension of the panel across the supports and span two or more joists/spans

  • Install with a 1/8” gap per panel maintained by a spacer or 10d box nail

  • Panel joints shall be on top of framing members and panels must be staggered each row, so seams do not line up row to row

  • Use prescribed fasteners for each project as per the approved plans. Should plans not exist, use a minimum of 3” long x .131” diameter smooth shank framing nail spaced 6” around the perimeter and 12” in the field of the panel with nail heads flush to the panel. Fasteners should be 3/8” from the outside edge of the panel

  • Other code approved fasteners may be used as they comply with APA standards

  • Cover roof sheathing as soon as possible to protect against excessive moisture. As with any wood panel, the panel should be dry with no raised edges prior to covering. Raised edges should be sanded flat before the shingle underlayment is applied

  • If eaves are exposed or unprotected from the bottom side, exterior grade paint must be used to protect panels

  • Allow sheathing to acclimate to ambient moisture before installing roof shingles

For Support: 678.999.2100

compliance
  • FirePoint is compliant with 2021 and 2018 International Building Code (IBC) and International Residential Code (IRC) when used as detailed by the manufacturers guidelines and code requirements

For Support: 678.999.2100
